WeaveNet

Petri net-based distributed workflow orchestration platform

v2.0 Released

Durable Workflows
for Everyone

Discover, share, and deploy workflow templates. Build automation faster with community-driven process definitions that scale with your organization.

Search templates... (e.g., "onboarding", "approval", "etl")

HR & OnboardingDevOpsFinanceCustomer SupportSalesData Pipeline

In active development and pilot testing

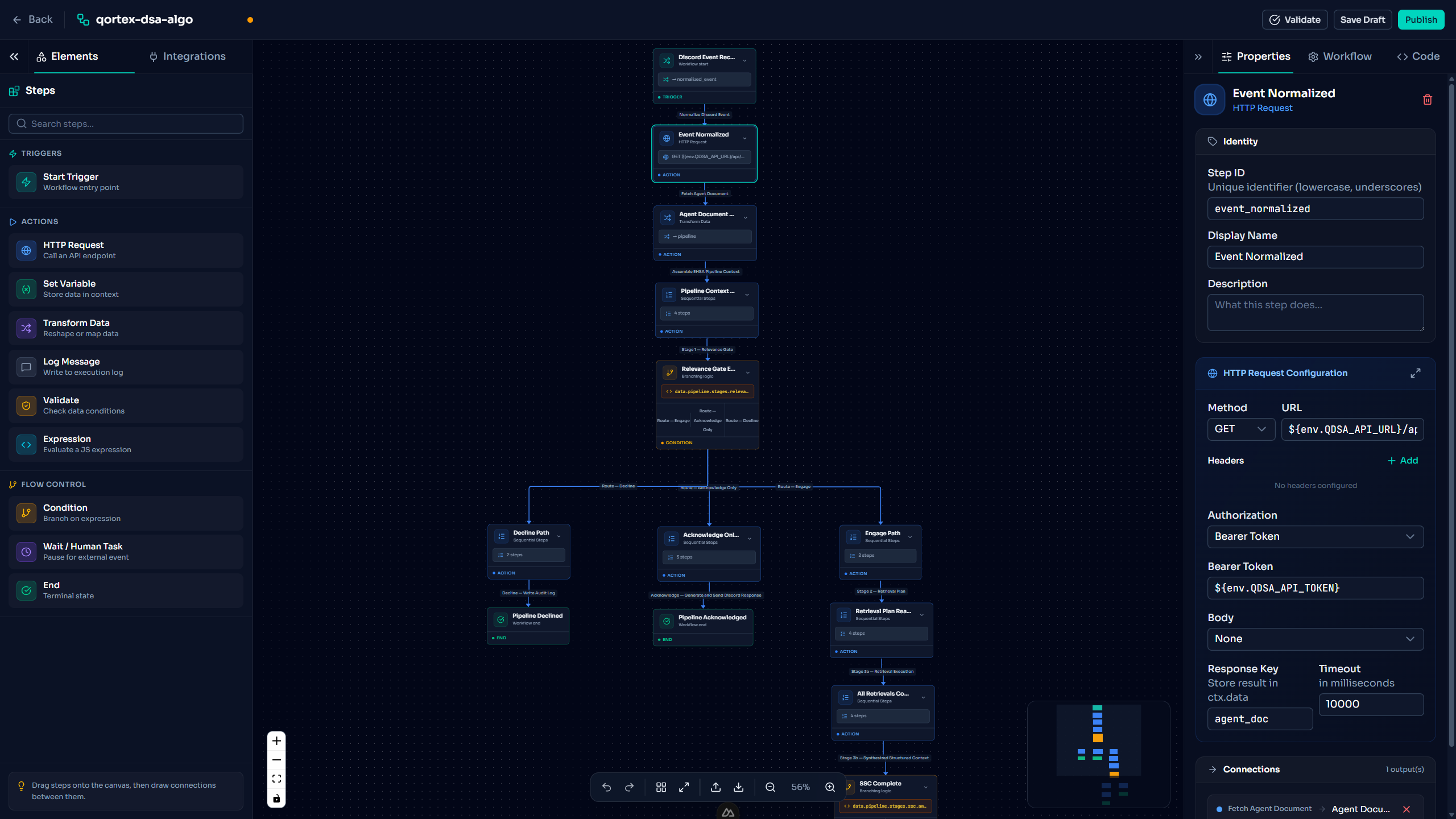

WeaveNet visual workflow builder - a canvas showing a Petri net workflow graph with a left-hand Steps palette (Triggers, Actions, Flow Control) and a right-hand Properties panel. — Visual workflow builder - drag-and-drop Steps DSL authoring on an editor canvas.

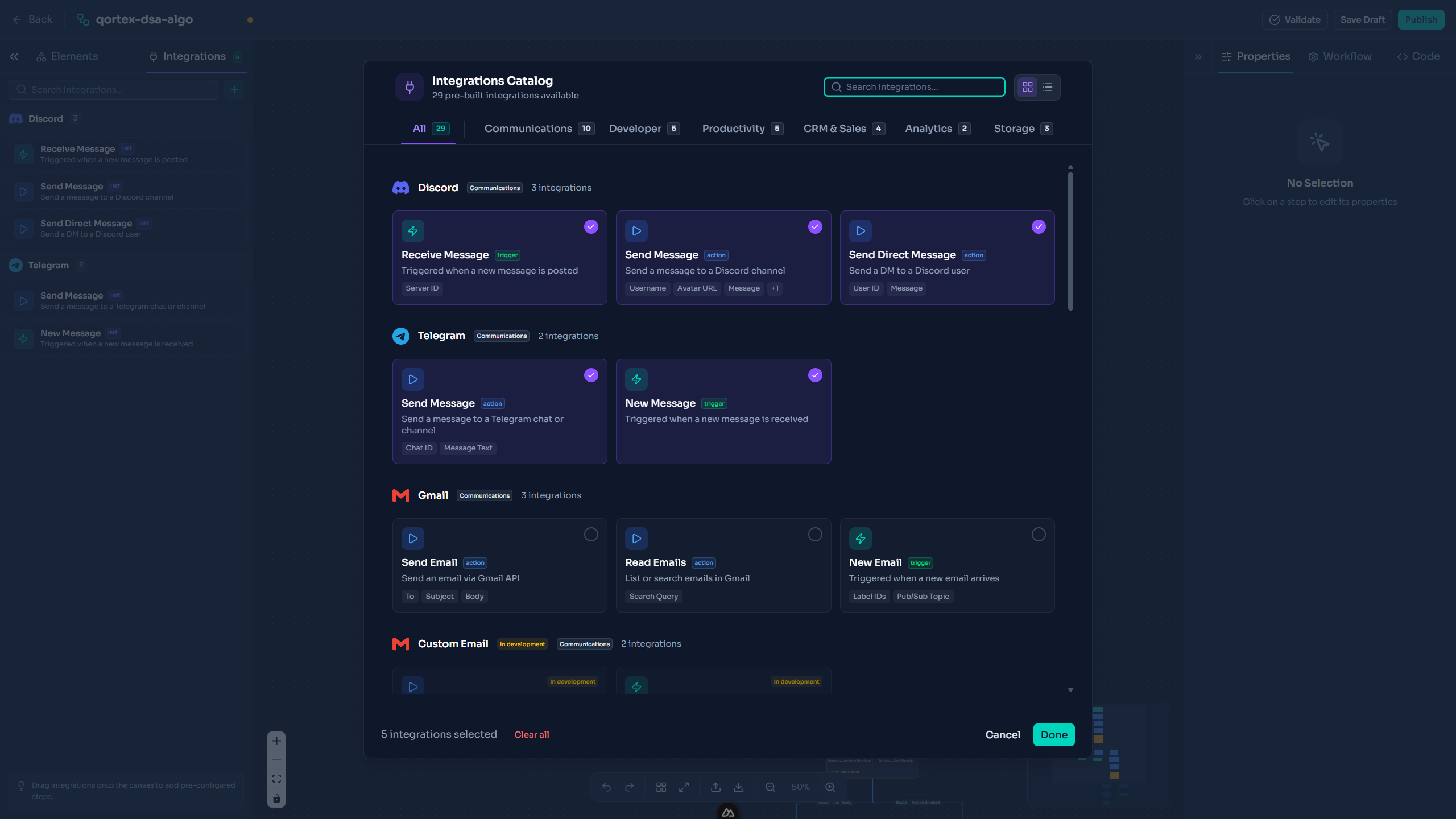

WeaveNet integrations catalog modal - categorized cards for Discord, Telegram, Gmail and other communication, productivity, CRM, analytics and storage integrations. — Visual workflow builder - drag-and-drop Steps DSL authoring on an editor canvas.

Overview

WeaveNet is a workflow automation platform that I built on Petri net formalism (evolved from a previous FSM based implementation). It enables users to design, deploy, and execute business process workflows using a declarative YAML DSL, with visual workflow builder, multi-tenant support, and enterprise integrations.

WeaveNet is an active project. A real-world MVP deployment is underway with an initial client, and the project is currently evaluating market fit through the WeaveNet Pilot Program with prospective engagements in discussion.

Architecture

Loom Worker
Core Petri net execution engine. Consumes workflow instances from a durable queue, evaluates transition guards, fires actions, and persists state to MongoDB.
Gateway
API gateway handling workflow execution requests (start, resume, cancel), dead letter queue management, and request routing.
Repository (Backend)
Template and application CRUD, user profiles, organization management, API keys and webhooks.
Repository (Frontend)
Nuxt 4 web application with a Vue Flow-based visual workflow builder, Monaco editor for YAML, and dashboard.
Observability
Full LGTM stack (Prometheus, Grafana, Tempo, Loki, OpenTelemetry Collector).

Tech stack: Node.js · Typescript · Express · Mongodb · Rabbitmq · Redis · Docker · Vue 3 · Nuxt 4 · Tailwind

Key capabilities

Steps DSL
Declarative workflow definitions with places, transitions, guards, and actions
Actions API
HTTP calls, transforms, conditionals, sequences, parallel execution
Saga compensation
Built-in compensating actions for distributed transaction rollback
Human-in-the-loop
Wait states with external resume signals for approvals and reviews (webhook-based)
Fork/join parallelism
Native support for parallel branching and synchronization
Inhibitor arcs
Mutex patterns using Petri net inhibitor semantics
Multi-tenant
Organization-scoped applications, profiles, and API keys

Clients

Hawkstow Construction Company
Antipolo, Rizal
Bookkeeper Agent that handles receipt capture and ledger entry automation right in their own communications channel (discord), reducing manual bookkeeping overhead. An initial deployment with potential to expand across other operational functions.
Active Pilot
